Intrusion

FEATURES

• Triggers outputs (2) via event/ manually/ by schedule
• 5A Relay Rating - Trigger 12v lights/ Open gates & garage doors
• Two-way wireless transmission (868Mhz)
• Up to 500m line of sight range

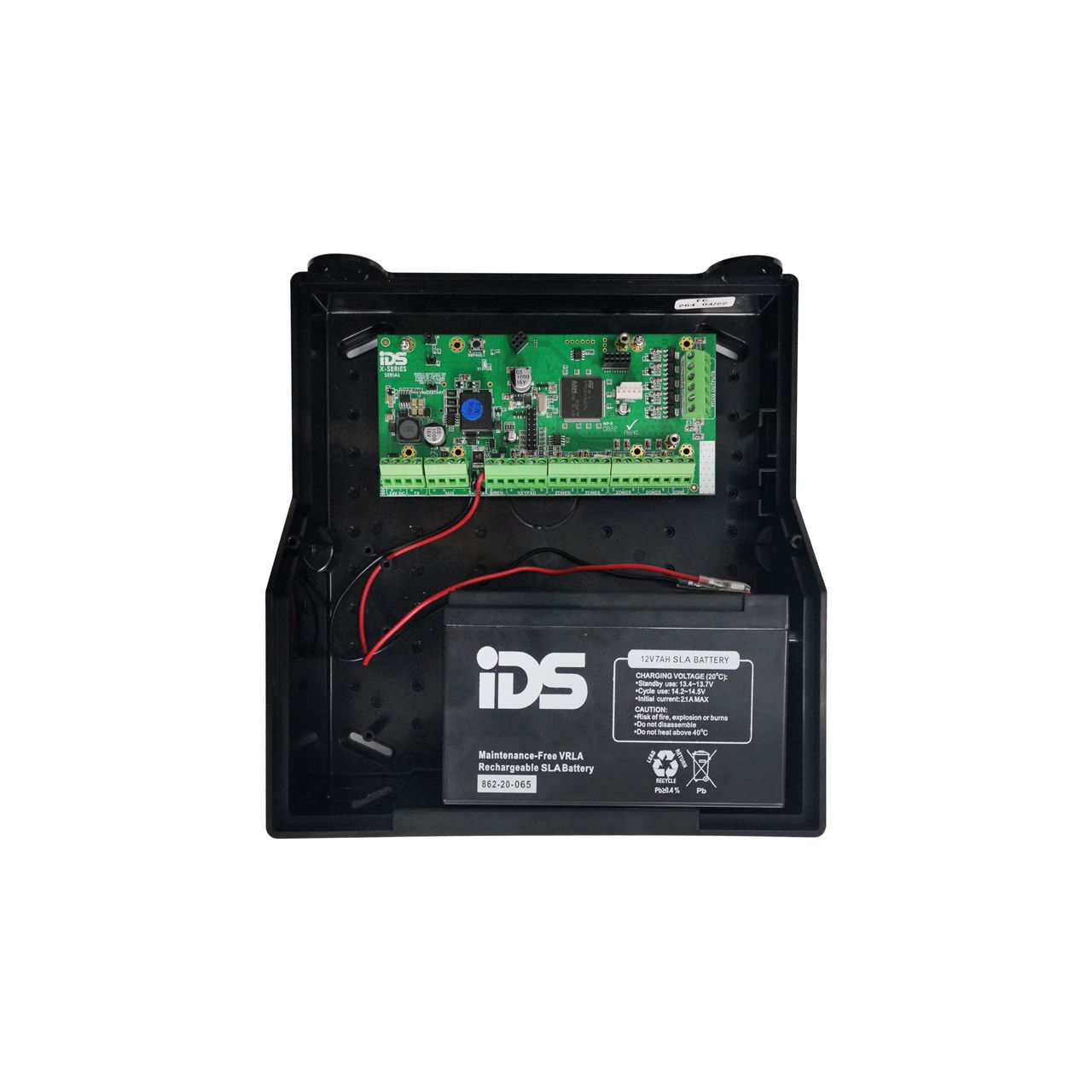

X64 Control panel 8 Zones expandable to 64 zones

PROGRAMMABLE FEATURES

• No activity arming
• No movement reporting
• Auto arm / disarm per partition
• Maintenance code
• Dynamic battery self test

USER FEATURES

• IDS’s renowned one-button arming, three quickarm modes: (1) Stay, (2) Away, (3) Stay and Go
• 5 Levels of arming
• 4 User stay profiles - stay, stay/night, home, sleepuser selectable
• User programmable stay, buzz and chime profiles
• Easy cross partition control
• Unique “buzz zone” feature provides early alarm warning
• 2 Year warranty

COMMUNICATION

• Contact ID
• Dual and split reporting
• Serial port for communication

FALSE ALARM PREVENTION FEATURES

• Zone verification
• Zone swinger shutdown
• Buzz zones

• Advanced LFP cells
• High cyclic life & long service life
• Superior high-rate discharge performance
• Integrated smart BMS
• Free maintenance & most safe operation

FEATURES

• 15m detection range with 95° angle
• Two-way wireless transmission (868Mhz XWave2)
• 4 Year battery life
• Front access to battery
• Small pet immunity (15kg max.)
• High EMI/EMC rejection
• Selectable LED indication
• Configurable high/low sensitivity
• Optional swivel bracket for both wall or ceiling mount

FEATURES

• Sends an open and close signal
• 2 year battery life
• External connector for 3rd party devices
• 500m Line of sight range
• Two-way wireless transmission (868Mhz)

FEATURES

• Adjustable volume and brightness
• Siren squawk on arm/disarm
• Blink on arm/disarm
• Strobe on alarm
• Arm follower light
• Configuration - Via mobile App

FEATURES

• User types - Master user, sub user, monitoring only user
• Areas - Up to 4 independently controlled areas
• Devices - Up to 20 wireless bi-directional devices
• User control - Via App or remote keyfob
• Area arming modes - Fully and part armed, disarmed
• Control room monitoring - Optional, T’s & C’s apply
• Device enrolment - Via QR code scanning
• System configuration - Via mobile App
• Mobile requirements - Android 5.0, iOS 11 (or later)
• Hub indicators - Built-in sounder + 3 LEDs
• (status, connection, power)
• WiFi - 2.4GHz
• Cellular - Dual sim, LTE (4G) / 2G fallback
• Hub power requirements - 5VDC, 2.5A (included)
• Hub backup battery - Rechargeable Li-Ion 2600mAh
• Hub standby time - 12H (recharge time of 4H)

FEATURES

• Bi-directional communication
• User friendly icons
• 200m Line of sight range
• Two-way wireless transmission (868Mhz)

Designed for use on installations where making use of different AC points or different electrical phases are necessary on installations, the XSeries bus isolator allows for convenient connections of multiple power supplies to key-bus peripherals.

FEATURES

• Protect peripherals from surges on the key-bus caused by “ground loops”
• Provide 1kV optical isolation
• Will extend the range of key-bus signals

The Bus Isolator should be used on sites where:

• The control panel power supply is not the only supply being used to power peripherals connected to a key-bus
• The key-bus cable is longer than 100m
• The key-bus cable runs outdoors
• The key-bus cable runs in a conduit alongside other electrical cables

XSeries - 8 channel output expander, 8 x 1amp 12vdc relays

FEATURES

• 8 Dry contacts outputs, 1 amp relay
• Easy key-bus wiring
• Up to 2 modules per installation
• Provides power/battery/fuse failure monitoring outputs

APPLICATIONS

• Multiple partition armed / alarm status
• Mimic panels
• Zone follower outputs
• Home automation control
• Alarm triggers for DVRs

Xwave2, in partnership with OPTEX, now offers the latest in bi-directional wireless technology.

Operating in the less congested 869MHz band, it ensures signal acknowledgment to confirm message delivery, by utilizing clear channel assessment, and encryption to avoid message tampering.

Due to ultra-short transmission times,and marshalling of status responses by the hub, 64 wireless zones can be hosted in close confines. Lost or tampered detectors are picked up inminutes due to superior supervision algorithms.

FEATURES

• Wireless zone expansion for Xwave2 / OPTEX wireless detectors (max of 16 detectors & 16 bi-directional remotes)
• Full reporting of zone, tamper, low battery & supervision by zone
• RF Jamming supervision & detection features

Universal receiver seamlessly integrates into any existing control panel zone inputs

FEATURES

• 8 Channel connects to any control panels zone inputs
• 3 Trouble outputs for supervision of low battery, zone tamper and check-in
• LED indicators per channel for zone trouble identification
• Easy detector enrollment
• Approximate range of 100m between detectors and receiver
• Ideal and convenient for adding OPTEX Xwave
