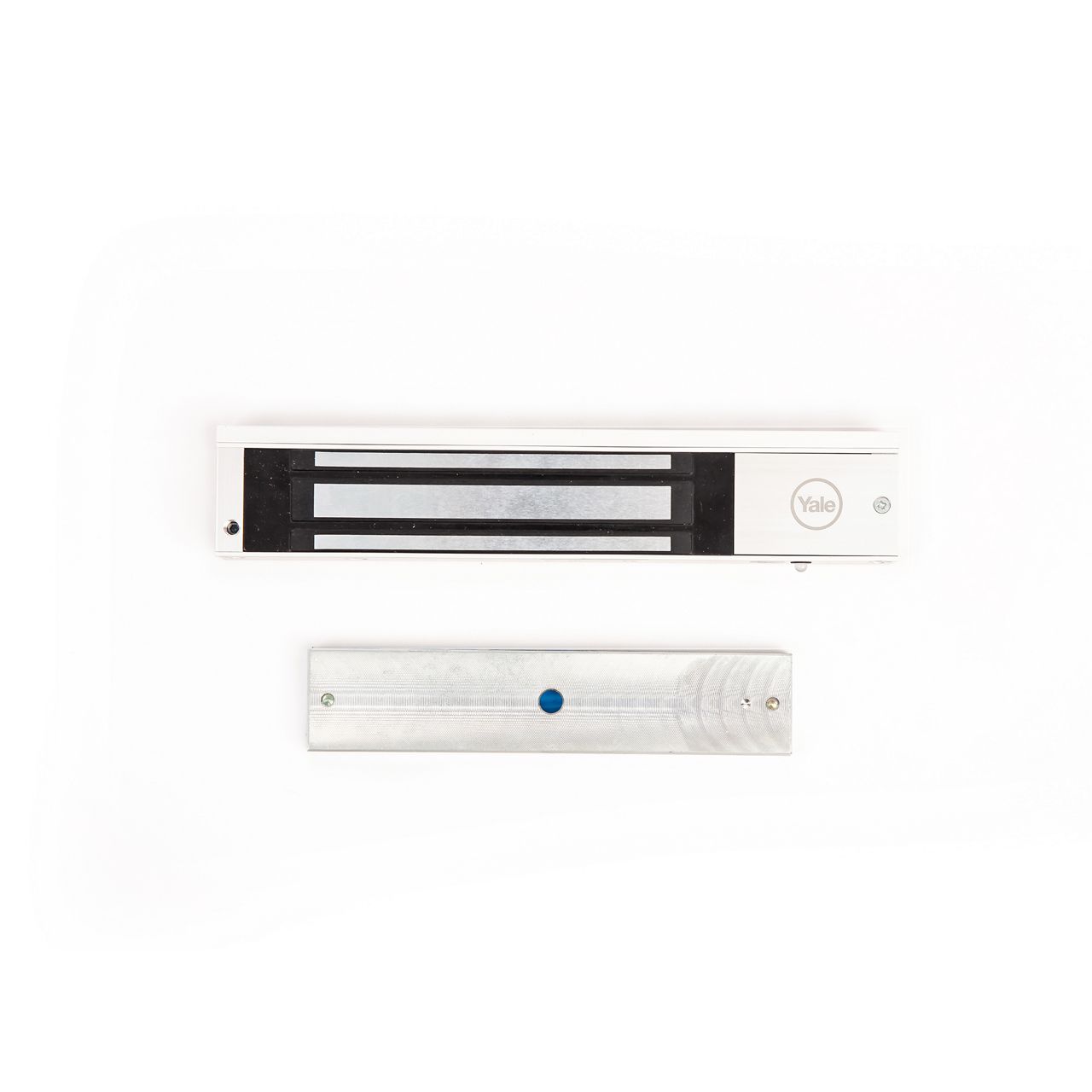

865-19-602 YALE magnetic lock

The  YALE 600lbs EM locks were designed to meet fire / life  safety applications by providing an auxiliary locking mechanism that  has no moving parts to bind or wear out for trouble free operation. This will ensure inhibited release at all times where they have   become  extremely prevalent in applications other than fire/life safety. Suitable for access controlled & secure areas within buildings.

• Holding force: Up to 600lbs
• Operating temperature: -10 to 55°C
• Holding force : 600lb
• Anodized aluminum housing
• Adjustable mounting bracket
• Dual voltage : 12 or 24 Vdc (selectable)
• Magnet size: 250 x 42 x 26mm
• Armature size: 180 x 38 x 11mm
• Current draw 480mA ±10%/12Vdc
