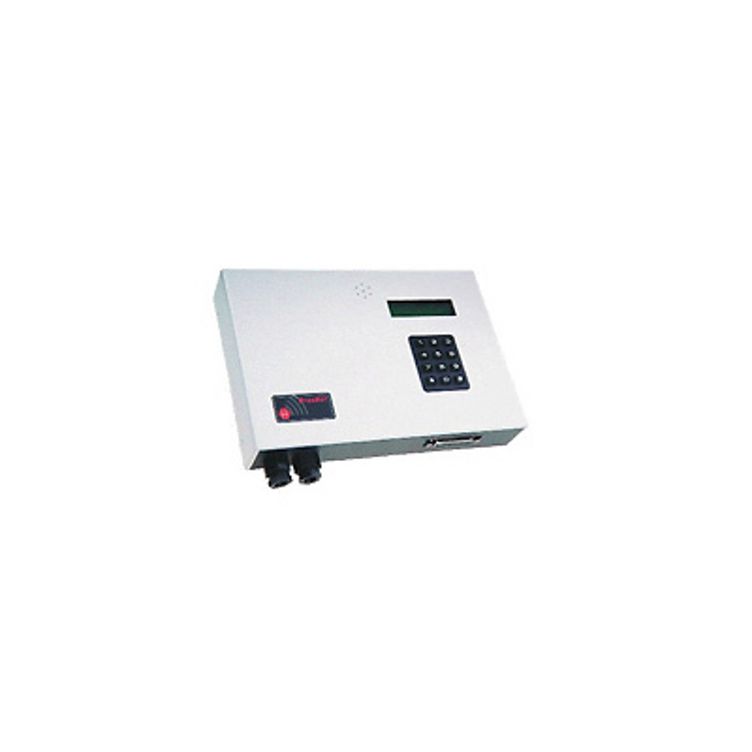

870-641-40 ProxNet Controller
- Time Zone 8 switch to override all 7 other time zones
- Anti-Pass-Back - including timed anti-pass-back
- Up Counters - preset to any value - counts to max 65535
- Down Counters - start count programmable - access denied at zero
- Date / Time stamp on transactions
o Programmable Tag validity period outside of which the tag is denied access - Individual or Global door release from ProxNet Controller
- Last 4800 transactions stored in ProxNet Controller nonvolatile memory
- Reader buffer of 1800 transaction in the event of communications loss
- Evacuation function
- Alarm input at each ProxNet Reader
- Alarm relay on ProxNet Controller
- Individual strike and alarm times programmable
- Full access control (except for APB and counters) in the event of RS-485 or Controller failure
- Automatic reader address configuration during installation
- Controller has 16 character display and 12 digit keypad
- Programming secured by 2 Level password
- PC software for Windows 95/98/NT/2000 for management of the system and reporting
