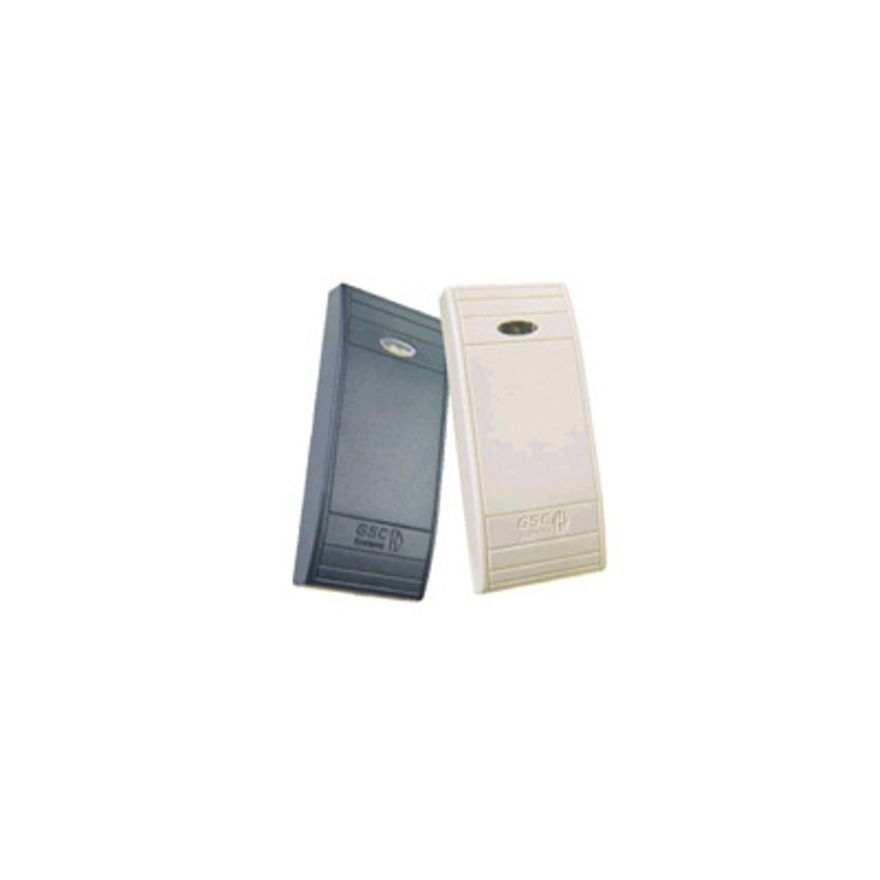

The ProxNet Mini Readers contain all the RFID interface electronics to be able to read and decode a tag. This data is then sent to the ProxNet Reader interface for access control processing. The unit has 3 LEDs and a sounder.
The unit is weatherproof and can be mounted up to 50 meters from the interface.
The reader dimensions are 89x45x16mm (with spacer 39mm)
640-60 Reader | 649-10 Interface | |
Power requirement | 11 - 14VDC 80mA | 11 - 14VDC 50mA |
IP Rating | IP65 | IP50 |
Operational Temperature | -20oC to 65oC | -20oC to 65oC |
Size mm | 89 x 45 x 16 (with spacer 39) | 126 x 103 x 37 (in housing) |
Relay rating | N/A | 5A - 25VAC 10A - 12VCD |
